Oncilla

High-Performance Storage for Demanding Workloads

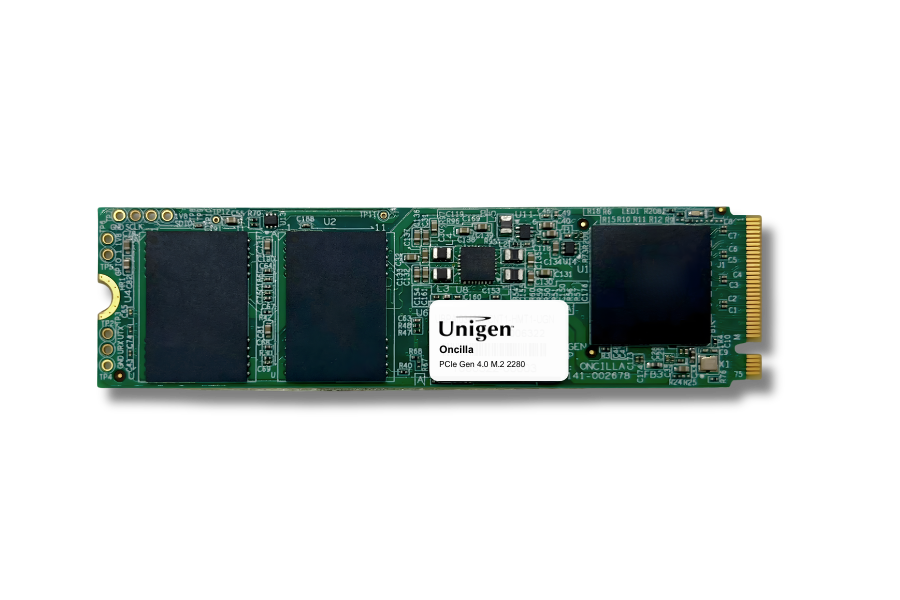

The Oncilla PCIe Gen4 M.2 2280 SSD is engineered for speed, endurance, and reliability. Built with an advanced PCIe Gen4 controller and high-endurance eTLC NAND Flash, Oncilla delivers exceptional performance for professional workstations, data-intensive applications, and next-generation computing environments. With blazing-fast sequential read speeds of up to 7400MB/s, Oncilla accelerates everything from large file transfers to real-time data processing, making it the ideal solution for video editing, VFX workflows, gaming, and enterprise applications.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Name*

Company*

Email*

Phone*

Country*

Request Type*

Request Data Sheet

Pricing

Talk to Sales

Other

Inquiry*

CAPTCHA

Features

M.2 2280 PCIe Gen 4.0
Capacities: 480GB, 960GB, 1.92TB, 3.84TB
Up to 7400MB/s Sequential Read Speeds
Designed to withstand intensive workloads with up to 2400TBW Endurance
Quad ARM Cortex-R5 cores (ARMv7-R, Thumb-2 support)
8 NAND channels, ONFI 4.1 / Toggle 4.0 (up to 1066MT/s)
Enterprise-Grade Security : TCG Opal 2.01, AES 128/256, RSA4096, SHA-3
End-to-end protection, LDPC ECC, RAID, CRC, HMB support
Ultimate Performance for Video Editing and processing massive files for Professional Workstations
Fast Boot and Computation
Four ARM Cortex-R5 CPU cores, compliant with ARMv7-R architecture with Thumb-2 support
8 NAND CH x 4CE, support ONFI 4.1 and Toggle 4.0 up to 1066MT/s
PCIe Gen4 x4 at 16GT/s
NVM Express Specification 1.4
Multiple security schemes: TCG Opal 2.01, AES 128/256, China state key SM 2/3/4, SHA 3-256,RSA4096
Enhanced data integrity protection: Programmable RAID, SRAM/ TCM/ Cache/ECC + LDPC ECC, HMB data integrity protection, End-to-End data protection, CRC

Specifications

Appearance
	Weight	10g
	Form Factor	M.2 2280
Interface
	Interface	NVMe PCIe Gen 4
Storage
	Flash Type	3D TLC NAND
	Capacity	480GB/ 960GB/ 1.92TB/ 3.84TB
Operating Environment
	Operating Environment	0°C to 70°C (C-Temp)
	Storage Temperature	-40°C to 85°C
	Operating Humidity	5% to 95%, non-condensing
	Shock	1,5000G. duration 0.5 mins, half sine wave
	Vibration	20G. Peak, 10~20KHz with 3 axis
Power
	Power Consumption (Active)	<8.2 W
	Power Consumption (Idle)	<5 mW
Performance
	Sequential Read/Write (max.)	7400
	Mean Time Between Failures	3 Million Hours
Data Retention
	Data Retention	Per JEDEC 218 standards
Technology
	Power Failure Protection	No
	DRAM Cache	Yes
	Error Correction Codes	Up to 55 bits correctable per 512-bytes sector (BCH)

Ordering Information

Part Number	Capacity
UBPAI03480HCNT1-HMX1-UGN	480GB
UBPAI03960HCNT1-IMX1-UGN	960GB
UBPAI0301T9CNT1-JMX1-UGN	1.92TB
UBPAI0303T8CNT1-KMX1-UGN	3.84TB
