The Unigen Ramaceto M.2 2280 PCIe Gen 3×4 SSD is specifically designed for enterprise storage and computing environments. It is engineered for applications where high performance, long-term reliability, and optimized Total Cost of Ownership (TCO) are critical requirements. Powered by the SMI 2262EN controller, the Ramaceto provides native support for high-performance NVMe™ and AHCI PCIe® Gen 3 host interfaces. This ensures seamless integration into modern server architectures and professional workstations. The controller features a proprietary space manager architecture designed to maximize data transfer rates between the host and flash memory. By optimizing these pathways, the Ramaceto eliminates firmware-level delays during sector read and write operations, providing consistent, low-latency performance under heavy enterprise workloads.

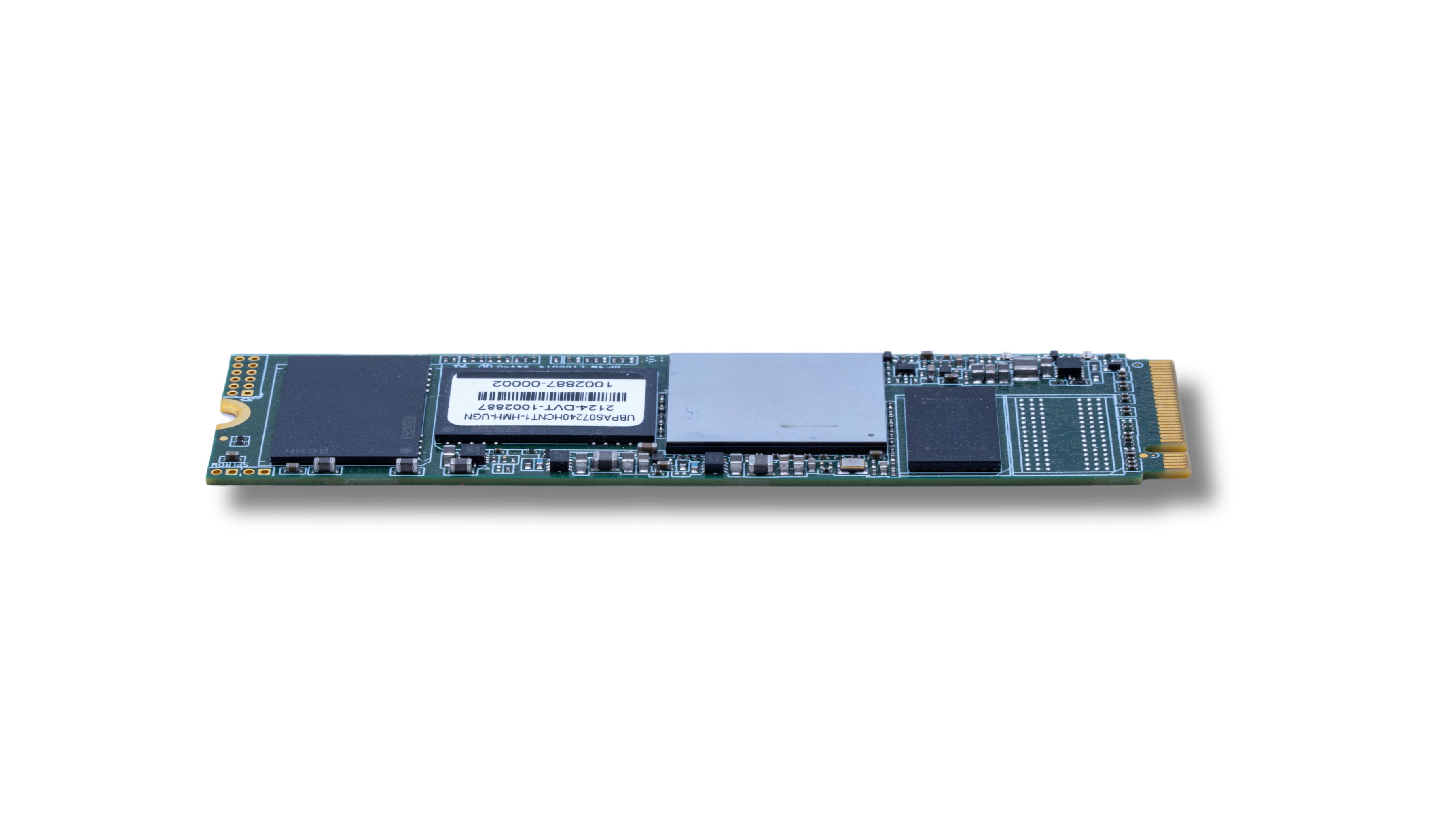

Ramaceto
Features
- Compliant with PCI Express® (PCIe) 3.1 standard
- End-to-end data path protection featuring CRC parity (512Byte + 2Byte)
- TCG OPAL 2.0 compliance for professional-grade security management
- Built-in AES 128/256-bit hardware encryption
- Secure Hardware SHA256 and TRNG (True Random Number Generator)
- Advanced Error Correction Codes (ECC) to prevent data corruption
- SMI SM2262EN Controller with native support for TRIM and SMART monitoring
- Capacities 240GB – 1.92TB
Specifications
| Appearance | ||
| Dimensions | 80.0 x 22.0 x 2.23 (mm) | |
| Weight | < 10g | |
| Form Factor | M.2 2280 | |
| Interface | ||
| Interface | PCIe Gen3x4, NVMe | |
| Storage | ||
| Flash Type | 3D TLC | |
| Capacity | 240GB/ 480GB/ 960GB/ 1.92TB | |
| Operating Environment | ||
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Humidity | 5% ~ 95% | |
| Shock | 1,500G. Duration 0.5ms, half sine wave | |
| Vibration | 20G. Peak, 10 ~ 20KHz with 3 axis | |
| Power | ||
| Power Requirement | 3.3V ± 5% | |
| Power Consumption (idle) | 2.5 W | |
| Performance | ||
| Sequential Read/Write (max.) | Read: 3,200 MB/s Write: 1,900 MB/s | |
| 4K Random Read/Write (IOPS max.) | Read: 370,000 Write: 300,000 | |
| Mean Time Between Failures (MTBF) | ≒2,000,000 hrs | |
| Technology | ||
| Power Failure Protection (PFP) | No | |
| DRAM Cache | Yes | |
| Error Correction Codes (ECC) | Yes |
Ordering Information
| Part Number | Capacity |
| UBPASMG240H | 240GB |
| UBPASMG480H | 480GB |
| UBPASMG960H | 960GB |
| UBPASMG01T9 | 1.92TB |
