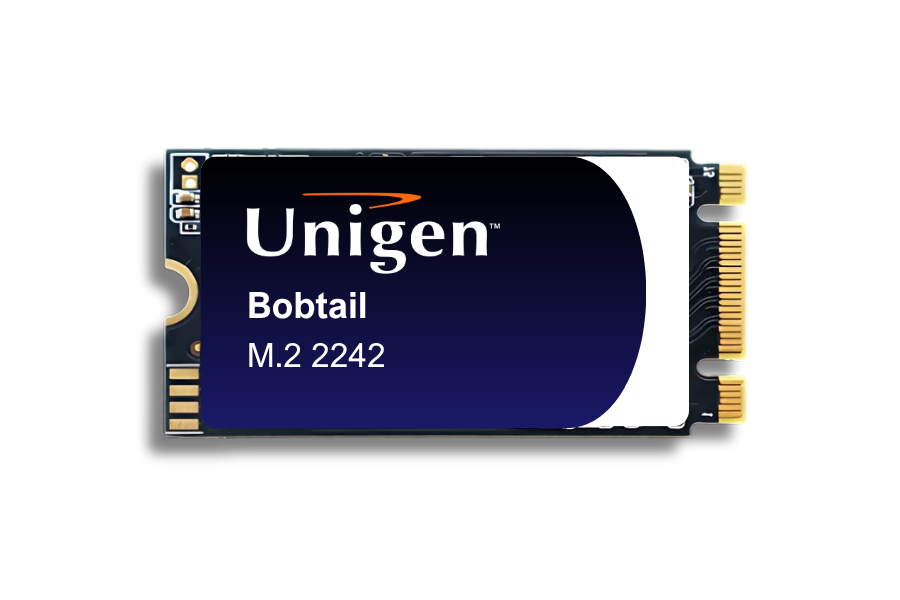

The Bobtail offers amazing speed with next-level 3D TLC NAND (240GB – 1.92TB) and a PCIe® Gen4.0, NVMe™ 1.4 controller that unlocks sequential read/write speeds of up to 4980/4645 MB/s. Its compact, single-sided DRAMless design offers speeds up to 10X faster than traditional SATA SSDs.
Built to handle demanding workloads, the 2TB model offers up to 1200TBW of endurance, which provides lasting performance and generous storage for your applications, games, and data.
| Appearance | ||
| Form Factor | M.2 2242 Single Sided | |
| Interface | ||
| Interface | PCIe Gen 4.0 | |
| Storage | ||
| Flash Type | 3D TLC NAND | |
| Capacity | 240GB, 480GB, 960TB, 1.92TB | |
| Operating Environment | ||
| Operating Temperature | -40℃ to 85℃ | |
| Performance | ||
| Sequential Read/ Write (max.) | Read: up to 4980 MB/S ; Write: up to 4875 MB/S | |
| Random Reads/Writes (RND4K Q32) | Read: up to 591 KIOPS ; Write; up to 521KIOPS | |
| Mean Time Between Failures (MTBF) | 2,500,000 power-on hours | |
| Technology | ||
| Power Loss Protection (PLP) | No | |
| DRAM Cache | No |
| Part Number | Capacity |
| UBPDI04240HINT1-IM3-UGN | 240GB 7% OP |
| UBPDI04480HINT1-JM3-UGN | 480GB 7% OP |
| UBPDI04960HINT1-KM3-UGN | 960GB 7% OP |
| UBPDI0401T9INT1-LM3-UGN | 1.92TB 7% OP |
