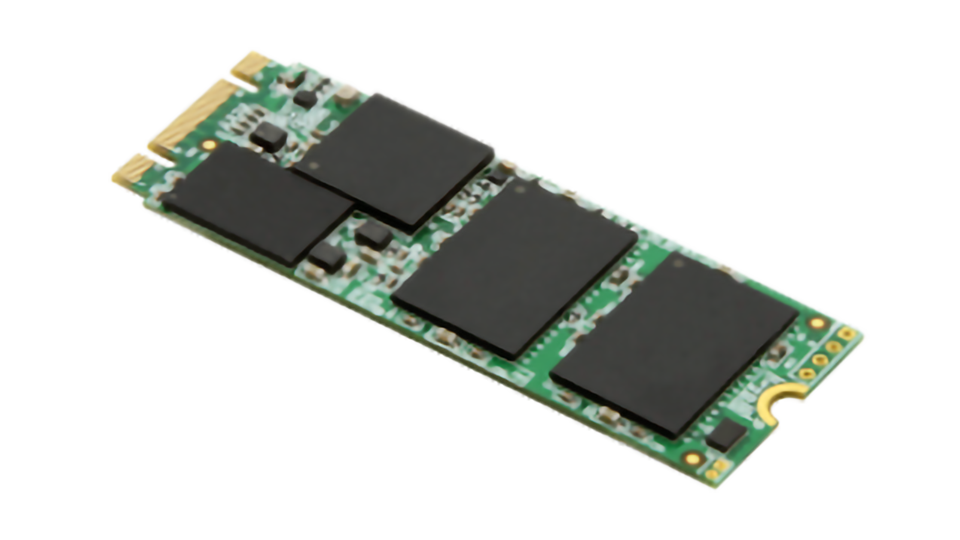

The Unigen Berlin M.2 Series is designed to meet the rigorous performance and reliability standards of enterprise-class storage and computing. Built around the SMI® 2246EN Flash controller, the Berlin series supports the high-bandwidth requirements of modern video processing, network switching, and server boot applications. Designed for mission-critical reliability, the Berlin Series features a Mean Time Between Failure (MTBF) rating of over 1.0 million hours, ensuring consistent operation over long-term deployments. All Unigen drives are backed by a standard Unigen warranty and include dedicated technical and engineering support for our OEM clients.
Berlin
Features
- TLC
- 128GB/ 256GB/ 512GB
- M.2 2280 SATA III
- NAND Flash Supported Client Multi-Level Cell (cMLC)
- SATA III Interface
Specifications
| Appearance | ||
| Weight | 10 grams | |
| Form Factor | Available in M.2 Form Factor | |
| Interface | ||
| Interface | SATA III M.2 | |
| Storage | ||
| Flash Type | TLC | |
| Capacity | 128GB, 256GB, 512GB | |
| Operating Environment | ||
| Storage Temperature | Operating : 0°C to 70°C (C‐Temp) ; Non-Operating '-40°C to 85°C | |
| Vibration | 20G. Peak, 10 ~ 20KHz with 3 axis | |
| Power | ||
| Power Consumption (Active) | <3W | |
| Power Consumption (Idle) | up to 2. 5 W | |
| Performace | ||
| Sequential Read/Write (max.) | Read: Up to 530 MB/s ; Write: 410 MB/s | |
| Mean Time Between Failures | > 1,000,000 hours | |
| Data Reliability | ||
| Data Reliability | Uncorrectable bit error rate <1 in 1016 bits read | |
| Technology | ||
| Power Loss Protection | No | |
| DRAM Cache | Yes | |
| Error Correction Codes | Yes |
Ordering Information
| Part Number | Capacity |
| UBM2SMO128HCM1-ETG-UGN | 128GB |
| UBM2SMO256HCM1-FTG-UGN | 256GB |
| UBM2SMO512HCM1-HTG-UGN | 512GB |
