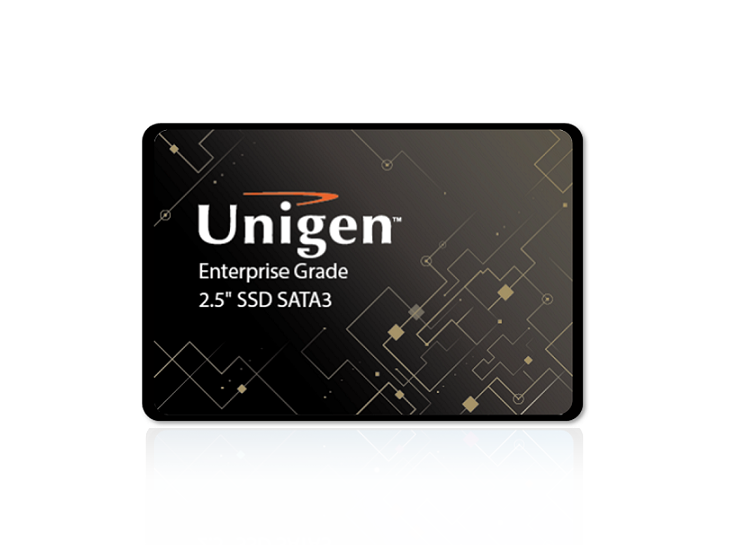

The Unigen Cicada family of 2.5” Enterprise SSDs is engineered for energy-efficient computing and high-reliability storage. Built with the SMI SM2271AB controller, these drives serve as a durable, shock-resistant alternative to conventional hard disk drives (HDDs). The Cicada features a proprietary space manager architecture that maximizes data transfer rates between the host and flash memory by eliminating firmware-level delays. Combined with tailored firmware, the SM2271AB processor provides full ATA disk emulation, ensuring seamless compatibility across a wide range of legacy and modern operating systems.
Cicada
Features
- eTLC for high endurance >1PWPD
- Ideal for write-intense or read-intense application
- Cicada SSD latency is 33% lower than commercial SATA SSD
- Enhanced data Security: SED/ AES-256/ SHA256
- S.M.A.R.T.
- Secure boot support
- High density solutions 5v/ 12v Vcc
- SECDED ECC protection on DRAM memory buffers
- PLP for data security
Specifications
| Appearance | ||
| Dimensions | 69.85 x 100.2 x 7.00 (mm) | |
| Form Factor | 2.5” | |
| Interface | ||
| Interface | SATA III/6.0Gbps | |
| Storage | ||
| Flash Type | eTLC | |
| Capacity | 960GB/ 1.96TB/ 3.84TB/ 7.68TB | |
| Operating Environment | ||
| Operating Temperature | Commercial: 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Humidity | 5% ~ 95%, non-condensing | |
| Shock | 1000G, Duration 0.5ms, half sine wave non-operating | |
| Vibration | 2.17 Grams (5-700 Hz) | |
| Power | ||
| Power Requirement | 3.3V ± 5% | |
| Power Consumption (idle) | <2.0 W | |
| Performance | ||
| Sequential Read/Write (max.) (FOB) | Read: 560 MB/s Write: 535 MB/s | |
| 4K Random Read/Write (IOPS max.) (FOB) | Read: 99,000 Write: 92,000 | |
| Mean Time Between Failures (MTBF) | ≒ 2,920,000 hrs |
Ordering Information
| Part Number | Capacity |
| UB88S10240HEAT1-JKJ1-UGN | 240GB |
| UB88S10480HEAT1-JKJ1-UGN | 480GB |
| UB88S10960HEAT1-JKJ1-UGN | 960GB |
| UB88S1001T9EAT1-JKJ1-UGN | 1.92TB |
| UB88S1003T8EAT1-JKJ1-UGN | 3.84TB |
| UB88S1007T6EAT1-JKJ1-UGN | 7.68TB |
